Mission Ignition TaKAI 20 ampere coil overview

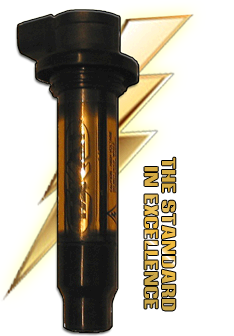

Superior ignition stick coil

Mission Ignitions TaKAI ignition coils are the only 20 ampere capable compact ignition coils available on the market. For the next level in performance enthusiats performance ignition coils which unleash more power and response for the ulimate in engine performance.

Delivering crisp throttle response, smooth engine operation, higher horsepower, and a more enjoyable riding experience, our TaKAI Ignition systems give unprecidented performance in a compact package.

Meant to compete with Motec and McLaren ignition components, our TaKAI ignition coils deliver a perfect, high output combustion event in your engine by placing more energy into the combustion process to get more energy back out of it.

TaKAI components meet a high output / highly compact / high energy pencil coil design for performance oriented powersport engines by spending a tremendous amount of time using analysis algoritms and prototypes to increase output characteristics while reducing size and weight.

Using a cost is no object approach Mission Ignition successfully adapts the latest technology typically reserved for F1, for use on your modern day street or performance oriented engine. (*see chart A in technical section below) This allows for the best dollar to horsepower gains available by extending horsepower by an average of +2 horsepower per 1000cc, and +2 torque across the rev range. (Typical +4-8 engine horsepower and +4-8 torque common on street orientated 4 cylinder applications) resulting in dramatic engine performance enhancements, as well as vastly improved driving experience.

TaKAI high energy ignition coils / super coils, have also been proven to deliver more then 75+hp in high horsepower nitrous and turbocharged drag bike applications.

Technology such as our high output “focal core” helps focus the energy field in the ignition coil for a hotter, higher efficiency spark event. The materials used and the overall design of the TaKAI coils are also made to dramatically improve efficiency vs other designs by as much as 70% ensuring greater engine response, mileage and performance characteristics from your engine. (*see chart B below in technical section)

The result is increased energy and spark duration over conventional designs allowing more fuel to be ignited and more energy to be released in your combustion events! This ensures the TaKAI coils start your engine easier, delivers more engine horsepower and deliver superior response and mileage benefits.

RipFORCE Racing Ignition Coil FEATURES include:Ignition cap engineering

-20 ampere capability (with TaKAI or NexT igniters)
-12.5 ampere capability (with WeaponX igniters)
-8 ampere capablity (with competitor / BOSCH style igniters)
-80kV capability (with TaKAI or NexT igniter and TaKAI amplifier)
-40kV capability (with WeaponX igniters)
-32kV capability (with competitor igniters)
-24V input capability (with TaKAI amplifier and NeXT or TaKAI igniter, PowerBank recommended)
-16V input capability (with WeaponX amplifier and WeaponX igniter)
-GRIP ignition coil retention mechanism
-FOCAL core technology
-FOCAL output stage
-multiple spark discharge
-complete competition level RFI/EMI protection
-super high output spark
-high quality conductor selections
-ultra efficient power transfer connections
-CNC profiled positive retention connectors
-weather proof dust boots
-extended fuel mileage
-extended horsepower
-interchangeable applications

Get your ride to perform the way you want...

TaKAI ignition coils are the complete solution for improved reliability, performance and fuel mileage! Every engine needs a performance edge for enhanced performance and reliability. TaKAI ignition coils are just the choice.

Available for most powersport applications including, dirt bike, street bike, snowmobile, jetski, powerboats, ATV's and more! *NOTE - Most applications are supported, call us at 321-400-5959 or contact support@missionignitionsystems.com for details.

< See WEAPONX IGNITION COILS -or- See NeXT Gen IGNITION COILS >

Buy ignition coil, cap now
Information : TaKAI Performance Ignition Coils

TaKAI Super Coil Specifications

Kawasaki, powered by Takai LINX System capability* (interchangable applications)

CNC profiled interconnects for superior power transfer

OFC copper* conductors for superior electrical transfer

Super High Output Power (+25% more energy vs most O.E. applications)*

Multi spark capability

High voltage insulators to prevent instances of spark flash over

Internal RFI / EMC / EMI shielding

Internal heat sinking for cooler more consistent operation

Focal core X2 technology

GRIP ignition coil retention mechanism

High efficiency FOCAL core for higher output and more efficient operation

HOW TaKAI COILS WORK, PERFORMANCE MEASUREMENTS VS COMPETITOR PRODUCTS
(NO HYPE, FLUFF OR OPINION, REAL ENGINEERING AND REAL NUMBERS) Ignition Cap Q factor

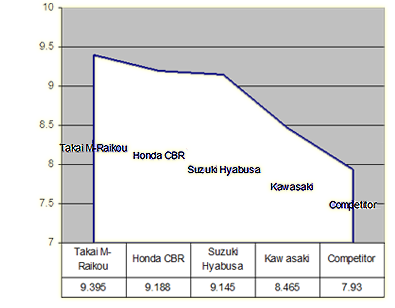

Q FACTOR COMPARISON

CHART A
NOTE : Higher is better.
This determines overall product effectiveness and design. The higher the Q measurement the lower the total rate of energy loss. Average measured Q factor gives an indication of overall product performance. The ideal product would have infinite Q factor. TaKAI ignition coils measure in 2 - 15% better on average.
*



ignition coil leakage loss

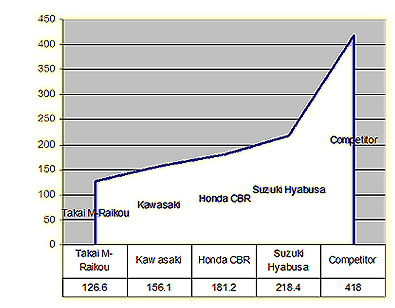

LEAKAGE LOSS COMPARISON

CHART B
NOTE : Lower is better.

Unlike other designs there are no tradeoffs in performance due to TaKAI's superior engineering. Leakage loss is a measurement of energy loss in the ignition coil before the final output stage. This is not part of the Q measurement. An ideal product would have zero losses for maximum efficiency. Actual average measured improvement with TaKAI coils is 20 - 70%.
*


It is very difficult to come up with a design that offers the best of all worlds but this is TaKAI's goal. Overall system efficiency is a cumulation of several factors, these two (leakage loss and q factor) summing up most of the important variables such as hysterisis loss, impedance loss, resistance, copper and core loss, skin effect loss, etc. It becomes apparant after looking at the test results how the TaKAI Super Coils more effectively output more energy vs the competition.

*Same measurement time and device used to test all products. TaKAI COILS show improvements vs all competitors at all engine operating rpms.

Mission Ignition - the most horsepower for your dollar

*All costs and hp numbers taken for a 2014 Kawasaki ZX14. All prices are MSRP.

Kawasaki coil on plug technology

The best value for your dollar, period!

Customers want to know what they are getting for thier money when they purchase an upgrade, and a simple cost analysis comparison chart to show the differences between competitor products and our TaKAI Super Coil solutions. Many may be surprised.

VS EXHAUST SYSTEMS

1)Leading competitor Stainless Exhaust System (FULL) MSRP $2630.95
TYPICAL HP GAINS 5-7hp, ~$438.49 per horsepower

2)Leading competitor standard Full exhaust system MSRP $1,445.00
HP GAINS 5-7hp, ~$240 per horsepower

3)Stainless Exhaust SLIP ONS MSRP $1514.95
HP GAINS 2-3hp, ~$605.98 per horsepower

4)Standard Exhaust SLIP ONS MSRP $995.00
HP GAINS 2-3hp, ~$398 per horsepower

VS AF CONTROLLERS AND AF CONTROLLERS WITH EXHAUST SYSTEMS

5)Leading competitor air fuel controller MSRP $399.99
HP GAINS 1hp, ~$399.99 per horsepower

6)Leading competitor Stainless Exhaust with AF controller MSRP $2630.95+ AF controller $399.99 = $3030.94
HP GAINS 10HP* (DYNO TIME ALSO REQUIRED)
~$303 PER HP WITH STAINLESS EXHAUST, DYNO TIME COSTS ALSO REQUIRED

7)Leading competitor Standard Exhaust with AF controller MSRP $1445.00+ AF controller $399.99 = $1844.99
HP GAINS 10HP* (DYNO TIME ALSO REQUIRED)
~$184 PER HP WITH STANDARD EXHAUST, DYNO TIME COSTS ALSO REQUIRED

VS BALL BEARINGS

8)CERAMIC BALL BEARINGS
HP GAINS 1.5HP, MSRP $399.99 WITHOUT INSTALLATION
~$266.66 PER HP, NOT INSTALLED

VS AIR FILTERS

9)Leading Air Filter
HP GAINS 0-2HP, MSRP $99.99
~$99.99 PER HP, SIMPLE INSTALLATION, NO OTHER ASSOCIATED COSTS

TaKAI PERFORMANCE IGNITION COILS

10)TaKAI IGNITION COILS
HP GAINS 4-6HP WITHOUT A/F CORRECTION OR DYNO TIME REQUIRED MSRP $749.99
~$149.99 PER HP, SIMPLE INSTALLATION, NO OTHER ASSOCIATED COSTS, HP GAINS THROUGH THE REV RANGE AND AT ALL THROTTLE POSITIONS*

OTHERS

11)CARBON FIBER WHEELS
$4000 HP GAIN NEGLIGIBLE, REDUCED ROTATING MASS (EXCESSIVE COST VS RETURN)

NeXT TO THE PERFORMANCE AIR FILTER UPGRADE THERE IS NO OTHER MODIFICATION THAT CAN COMPETE IN COST VS PERFORMANCE AND EASE OF INSTALLATION.
